WB18T Ultrasonic Pressure Gauge 3-300KHZ/3-3000KHZ 0-500MV Five Gears

Advantages of using Ultrasonic Boeing pressure gauges

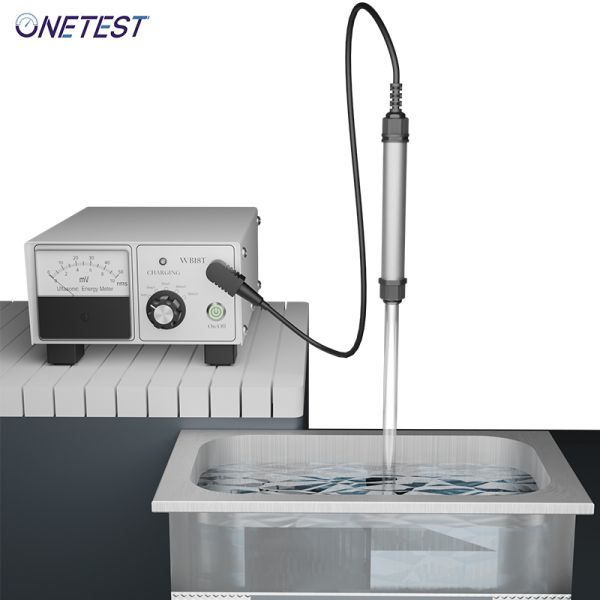

The WB18T ultrasonic pressure gauge is a multifunctional instrument for measuring the intensity of ultrasonic waves in liquids. The traditional ultrasonic cleaning industry makes rough judgments through visual observation or uses tin foil for tests without quantified data. However, due to factors such as the frequency of ultrasonic waves and the hardness or heaviness of water quality, the differences are significant, and it is impossible to distinguish the actual intensity.
The WB18T ultrasonic Boeing pressure gauge can solve the above problems. It provides the industry with a reliable way to quantify and measure data. It can be widely applied in production quality control, quality management, engineering experiments, equipment calibration and inspection, etc.

1. Extra-long warranty period: A full warranty of 2 years
2. Quality Assurance: Shipment inspection report is attached, and the machine supports calibration at the factory
3. Global voltage :AC90-24V, applicable to all regions worldwide
4. Power-saving circuit design: 12 hours of battery life on full charge
5. Charging prompt: When the battery is fully charged, the red light will turn green
6. Low battery warning: The main power green light will flash
7. High-precision measurement: Multi-point linear design enhances measurement accuracy
8. Reduced pointer flickering: Multi-reforming wave circuits are adopted to minimize measurement surges
9. Multiple Settings :5,10,50,100, and 500mV, five Settings to meet fine demands
10. Diverse probe specifications: Supports customized lengths and Teflon type sound pressure rods dedicated to special liquids
11. Bottom elevation Angle design: Lifting number 摅 visibility and ease of reading
12. Reliable packaging: The main unit is equipped with a high-quality storage box, and the sound sticks are made of high-quality boxes

Technical indicators

WB18T Ultrasonic Pressure Gauge

Ultrasonic Pressure Gauge 3-300KHZ

3-3000KHZ Ultrasonic Pressure Gauge

WB18T Ultrasonic Pressure Gauge 3-300KHZ/3-3000KHZ 0-500MV Five Gears Images
